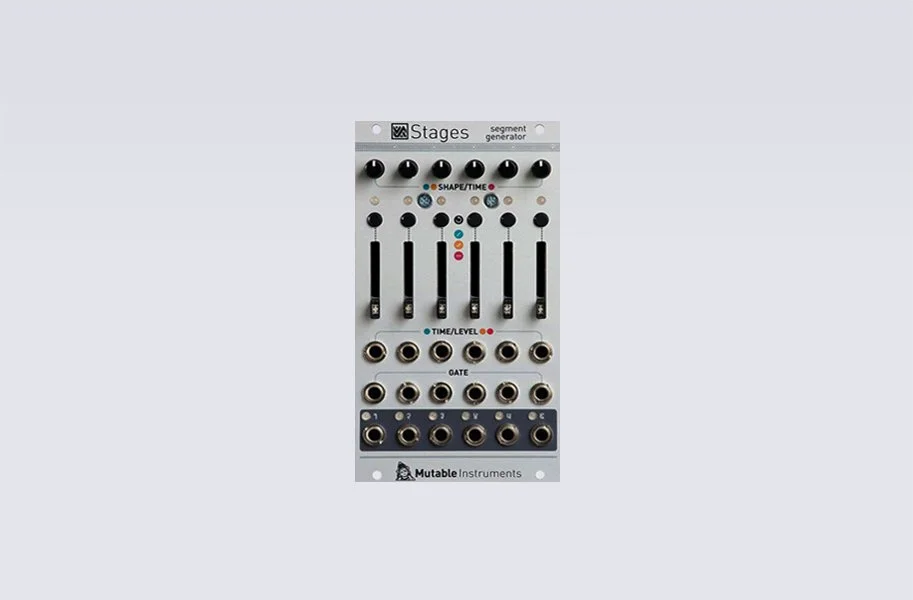

Stages
THE MODULATION CONSTRUCTION SET
ASR envelope, complex 6-stage envelope, LFO, 4-step sequence or switched LFO: Stages can be any kind of modulation.
Not because all these behaviors have been pre-programmed in the module, but because it allows you to describe your own modulations in terms of basic operations: ramp from one voltage to another, hold a voltage at a set level, wait for a trigger and slew. With or without looping.
Whether you need one complex envelope, or several simpler modulations, Stages reconfigures itself according to which of its gate inputs are patched. There is always a role for it in your patch.
THAT’S IT
Really, there isn’t more to the story.
Self-generating chiptunes? Very weird LFO shapes? Random gate delay? Stages probably does strange and wonderful things when patched in a certain way.
THE MODULATION CONSTRUCTION SET
ASR envelope, complex 6-stage envelope, LFO, 4-step sequence or switched LFO: Stages can be any kind of modulation.
Not because all these behaviors have been pre-programmed in the module, but because it allows you to describe your own modulations in terms of basic operations: ramp from one voltage to another, hold a voltage at a set level, wait for a trigger and slew. With or without looping.
Whether you need one complex envelope, or several simpler modulations, Stages reconfigures itself according to which of its gate inputs are patched. There is always a role for it in your patch.
THAT’S IT
Really, there isn’t more to the story.
Self-generating chiptunes? Very weird LFO shapes? Random gate delay? Stages probably does strange and wonderful things when patched in a certain way.
THE MODULATION CONSTRUCTION SET
ASR envelope, complex 6-stage envelope, LFO, 4-step sequence or switched LFO: Stages can be any kind of modulation.
Not because all these behaviors have been pre-programmed in the module, but because it allows you to describe your own modulations in terms of basic operations: ramp from one voltage to another, hold a voltage at a set level, wait for a trigger and slew. With or without looping.
Whether you need one complex envelope, or several simpler modulations, Stages reconfigures itself according to which of its gate inputs are patched. There is always a role for it in your patch.
THAT’S IT
Really, there isn’t more to the story.
Self-generating chiptunes? Very weird LFO shapes? Random gate delay? Stages probably does strange and wonderful things when patched in a certain way.
STAGES FEATURES
Ergonomic layout
Three segment types: Ramp, Hold, Step
Single and grouped segment looping capabilities
Single segment processing
CV output range: 0V to +8V (though a negative CV down to -8V can be generated by a Hold or Step segment via CV modulation)
Segment duration: 1ms to 16s
All inputs: 100k impedance, DC to 2kHz
31.25kHz refresh rate
16-bit CV capture, 14-bit CV generation with accurate software calibration. Error below 2mV
