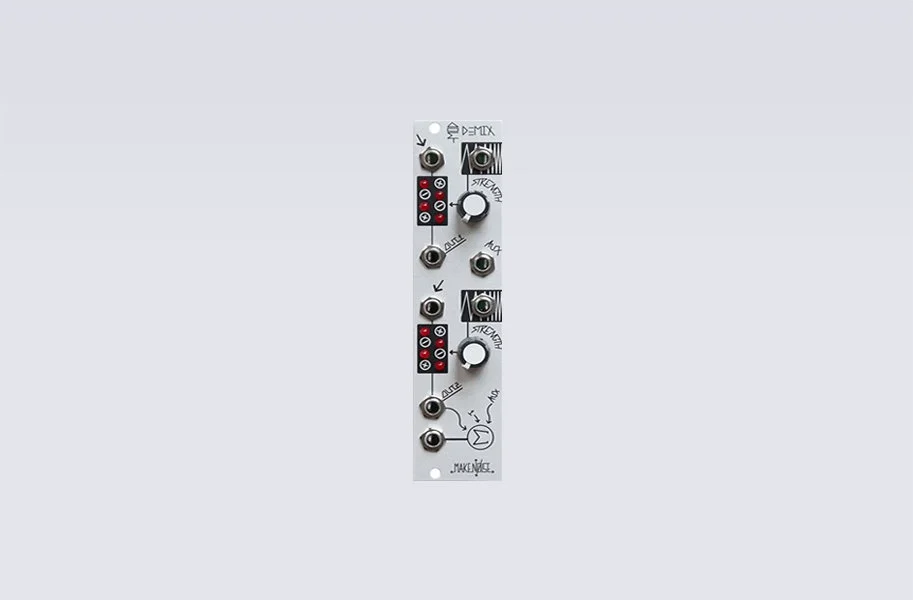

ModDemix

The modDemix music synthesizer module features 2 identical direct-coupled balanced modulator circuits that may be used together or independently for Ring Modulation, VCA, Mixer, Signal Multiplication, Voltage Controlled Polarization, Attenuation and more.

Specifications

• Width: 6hp

• Max Depth: 24mm

• Power:
  30mA@ +12V
  30mA @ -12V

Features

• Unique balanced modulator circuit turns OFF around zero volts at the Carrier/ Control INput, making the circuit behave well as a VCA

• STRENGTH is a Combo Knob, with nothing patched to STRENGTH CV IN, it works as a standard panel control, setting Level. With signal patched to STRENGTH CV IN, it works as an attenuator, setting the strength of the modulation

• Both circuits feed a summing stage, allowing the module to be used as a voltage controlled mixer

• AUXiliary IN allows for the stacking of multiple modDemix and/ or Optomix to create larger mixes

• Able to introduce warm distortions to audio signals, sounds like no other VCA or Ring Mod

• MAX BLINKENLIGHTS, 8 LEDs packed into a small 6hp module

• Pairs well with MATHS and Optomix
